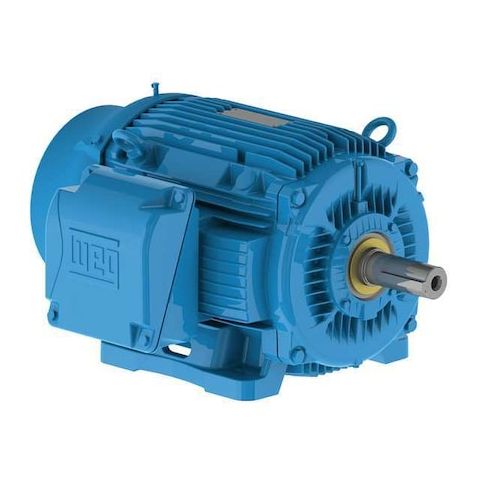

Three-Phase Hazardous Location Motor, 20 hp HP, 256T Frame, 460V AC Voltage, 1, 800 RPM Nameplate RPM MPN:02018ST3QAP256T-W22
Three-Phase Hazardous Location Motor, 20 hp HP, 256T Frame, 460V AC Voltage, 1, 800 RPM Nameplate RPM
This three-phase hazardous location motor is designed for severe duty applications, suitable for use in environments where safety is paramount. With a 20 hp rating and 1,800 RPM nameplate speed, it provides reliable performance in a variety of settings. The motor's totally enclosed fan-cooled design and rigid base mounting make it ideal for use in harsh environments, such as chemical plants, oil refineries, and other industrial settings. Its 1.25 service factor and continuous duty cycle ensure long-lasting operation, making it a valuable asset for businesses that require high-performance motors in hazardous locations.
Top product features:
- Three-Phase Design allows for efficient and reliable operation in hazardous locations.
- Totally Enclosed Fan Cooled Enclosure provides a safe and protected environment for the motor.
- Continuous Duty Cycle enables the motor to operate for extended periods without interruption.
Top product applications:
- Pumps
- Compressors
- Conveyors
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 24.1 A, 256T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.50
- Package Width: 33.50
- Package Height: 20.50
- Package Weight: 311.00
Product info last updated on March 3, 2026 11:44pm UTC
Category: Motors
