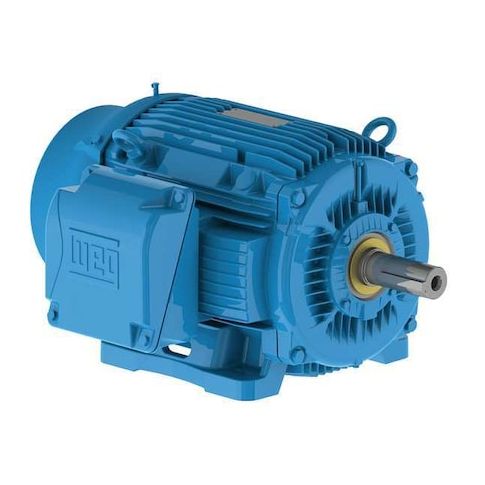

Three-Phase Hazardous Location Motor, 30 hp HP, 286T Frame, 460V AC Voltage, 1, 765 RPM Nameplate RPM MPN:03018ST3QAP286T-W22
Three-Phase Hazardous Location Motor, 30 hp HP, 286T Frame, 460V AC Voltage, 1, 765 RPM Nameplate RPM
This heavy-duty three-phase motor is designed for severe duty applications in hazardous locations, delivering reliable performance in extreme conditions. With a 30 hp rating and 1,765 RPM, it's perfect for demanding industrial use, such as in manufacturing, oil and gas, and chemical processing. The motor's totally enclosed fan-cooled design and rigid base mounting ensure efficient cooling and stability, while its NEMA Design B rating guarantees compliance with industry standards. Its compact size and robust construction make it an ideal choice for space-constrained areas, offering a high level of reliability and durability in harsh environments.
Top product features:
- Three-phase design for efficient operation in hazardous locations
- Totally enclosed fan cooled design for reduced maintenance and increased reliability
- Continuous duty cycle for uninterrupted operation in severe environments
Top product applications:
- High-Temperature Processing Plants
- Petrochemical Facilities
- Oil and Gas Production Sites
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 30 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 35.1 A, 286T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.30
- Package Width: 22.50
- Package Height: 17.80
- Package Weight: 464.00
Product info last updated on March 3, 2026 11:41pm UTC
Category: Motors
