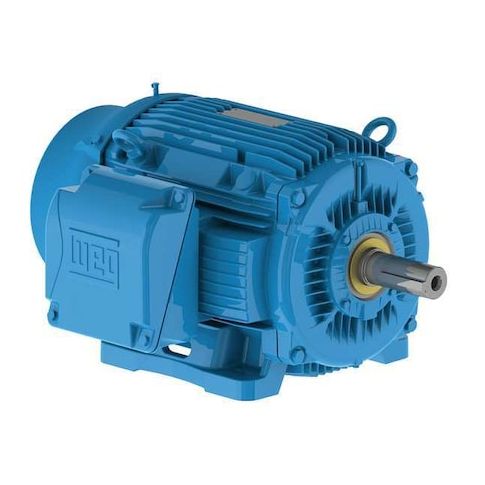

Three-Phase Hazardous Location Motor, 50 hp HP, 326T Frame, 460V AC Voltage, 1, 800 RPM Nameplate RPM MPN:05018ST3QAP326T-W22
Three-Phase Hazardous Location Motor, 50 hp HP, 326T Frame, 460V AC Voltage, 1, 800 RPM Nameplate RPM
The Weg Three-Phase Hazardous Location Motor is a robust and reliable solution for severe duty applications. Designed for use in hazardous locations, this motor operates at 1,800 RPM and 50 hp, making it ideal for applications such as oil and gas, chemical processing, and mining. With a totally enclosed fan-cooled design and continuous duty cycle, it can withstand harsh environments and maintain optimal performance. The motor's rigid base mounting and NEMA Design B rating ensure secure and efficient operation. Suitable for use in extreme temperatures and voltages, this motor is a trusted choice for demanding industrial applications.
Top product features:
- Three-Phase Design: Suitable for applications that require three-phase power.
- Totally Enclosed Fan Cooled Enclosure: Provides a safe and reliable operating environment in harsh conditions.
- Severe Duty Rating: Enables the motor to withstand heavy loads and continuous operation.
Top product applications:
- Pumps and compressors in chemical plants
- Industrial machinery in hazardous locations
- Oil and gas exploration equipment
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 50 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 59.2 A, 326T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 34.60
- Package Width: 24.90
- Package Height: 19.40
- Package Weight: 566.00
Product info last updated on February 24, 2026 1:39pm UTC
Category: Motors
