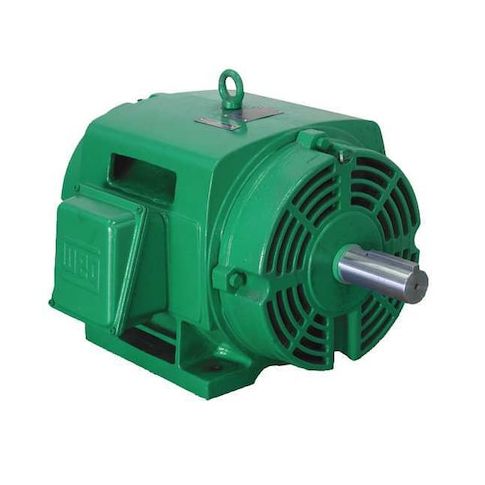

Three-Phase General Purpose Motor, 30 HP, 284TS Frame, 230/460V AC Voltage, 3545 rpm Nameplate RPM MPN:03036OT3E284TS-W40
Three-Phase General Purpose Motor, 30 HP, 284TS Frame, 230/460V AC Voltage, 3545 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 30 HP, Nameplate RPM 3545 rpm, Frame 284TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 70.0/35.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 3001-3600, CSA (LR38324), UL (E104590)
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 31.60
- Package Height: 18.50
- Package Weight: 373.00
Product info last updated on May 21, 2026 3:51pm UTC
Category: Motors
