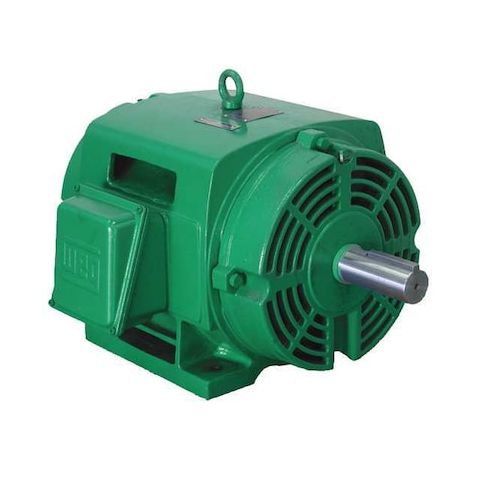

Three-Phase General Purpose Motor, 100 HP, 365TS Frame, 230/460V AC Voltage, 3550 rpm Nameplate RPM MPN:10036OT3E365TS-W40
Three-Phase General Purpose Motor, 100 HP, 365TS Frame, 230/460V AC Voltage, 3550 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 100 HP, Nameplate RPM 3550 rpm, Frame 365TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 232.0/116.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 34.00
- Package Width: 45.50
- Package Height: 31.50
- Package Weight: 844.00
Product info last updated on April 13, 2026 5:35am UTC
Category: Motors
