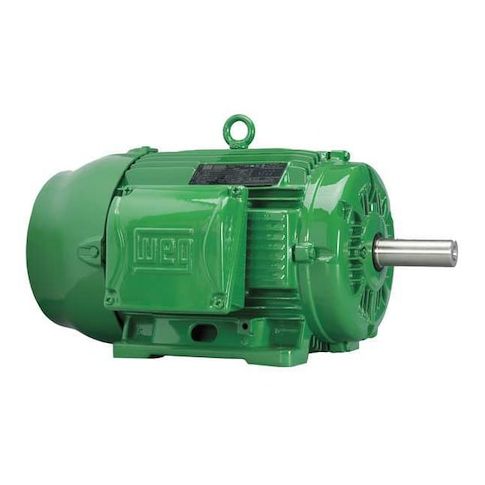

Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 3545 rpm Nameplate RPM MPN:02036EG3E256T-W22
Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 3545 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 3545 rpm, Frame 256T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 46.0/23.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 3001-3600, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 29.30
- Package Height: 16.00
- Package Weight: 331.00
Product info last updated on May 10, 2026 11:03am UTC
Category: Motors
