PumpMtr, 3ph, 100hp, 3550, 208-230/460, 365JP MPN:10036OT3E365JP-W40
PumpMtr, 3ph, 100hp, 3550, 208-230/460, 365JP

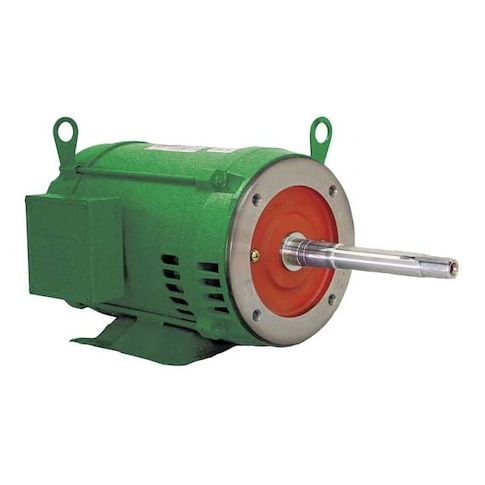

The Weg Close-Coupled Pump Motor is a reliable and efficient solution for demanding applications. Designed for continuous duty cycles, this 100hp motor is ideal for use in pumps, providing a durable and long-lasting performance. With a high inverter rating of 1000:1, it can handle variable speed requirements with ease. The motor's compact design and exterior conduit box location make it easy to integrate into existing systems. Its 3-year manufacturer's warranty and ball bearings ensure maximum uptime and minimal maintenance. Suitable for a wide range of industries, this motor is perfect for applications where reliability and efficiency are paramount.
Top product features:
- Close-coupled design for reduced installation space requirements
- Inverter-rated for use in variable frequency drive applications
- Ball bearings for smooth operation and extended motor lifespan
Top product applications:
- Pump
- Motor
- Industrial Equipment
Close-Coupled Pump Motor, Body Dia. 18.4 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 365JP, Hz 60 Hz, Full Load Amps 199.8-222.0/111.0, Height 21 1/4 in, HP 100, HP @ 50Hz 75, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 23 3/4 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 46.85
- Package Width: 32.36
- Package Height: 29.61
- Package Weight: 963.05
