PumpMtr, 3ph, 100hp, 1780, 208-230/460, 404JP MPN:10018OT3E404JP-W40
PumpMtr, 3ph, 100hp, 1780, 208-230/460, 404JP

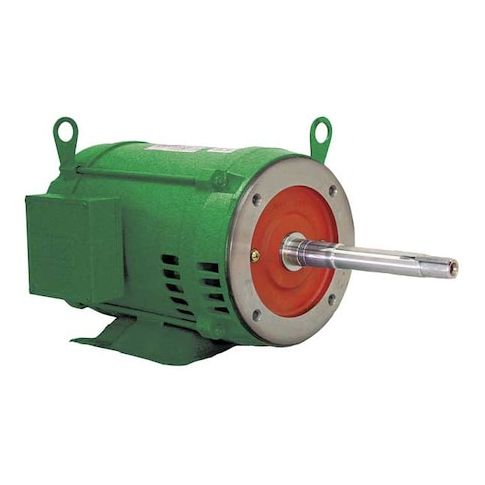

This 100hp, 3-phase pump motor from Weg is specifically designed for continuous duty cycles in demanding industrial applications. With a robust design and high-torque output, it efficiently powers large pumps, providing reliable operation and minimizing downtime. The motor's inverter rating and ball bearings ensure smooth and quiet operation, while its compact size and exterior conduit box location simplify installation. Suitable for use in a variety of industries, including water treatment, wastewater management, and chemical processing, this pump motor offers a cost-effective solution for heavy-duty applications, providing a long-lasting and efficient power source for critical operations.
Top product features:
- Close-Coupled design allows for compact installation and reduced footprint
- Ball bearings provide reliable and long-lasting motor operation
- Inverter Rated for use with variable frequency drives, enabling efficient and flexible motor control
Top product applications:
- Pump
- Motor Bearings Ball
- Motor Application Pump
Close-Coupled Pump Motor, Body Dia. 19.4 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 404JP, Hz 60 Hz, Full Load Amps 207.0-230.0/115.0, Height 21 1/4 in, HP 100, HP @ 50Hz 75, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 23 3/4 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 46.85
- Package Width: 32.36
- Package Height: 29.61
- Package Weight: 1068.11
Product info last updated on March 3, 2026 6:16pm UTC
Category: Motors
