Pump Mtr, 3ph, 75hp, 1780, 208-230/460, 365JM MPN:07518OT3E365JM-W40
Pump Mtr, 3ph, 75hp, 1780, 208-230/460, 365JM

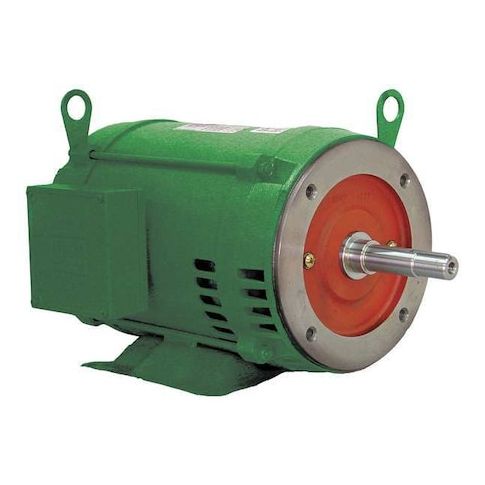

This 75hp, 3-phase pump motor from Weg is a reliable and efficient solution for various industrial applications. Designed for continuous duty cycles, it features a close-coupled design with a robust frame and ball bearings for smooth operation. With a high inverter rating of 1000:1, it can handle demanding pump applications with ease. The motor's compact size and light weight make it ideal for installation in tight spaces. Suitable for use in water treatment, wastewater, and chemical processing plants, this motor provides a reliable and efficient solution for demanding pump applications.
Top product features:
- Close-coupled design for reduced installation and maintenance complexity
- Ball bearings for improved motor durability and reduced vibration
- Inverter-rated for use in variable frequency drive applications
Top product applications:
- Pump
- Inverter
- Continuous Duty
Close-Coupled Pump Motor, Body Dia. 18.4 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 365JM, Hz 60 Hz, Full Load Amps 189.0-171.0/85.5, Height 21 1/4 in, HP 75, HP @ 50Hz 60, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 23 3/4 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.49
- Package Width: 32.36
- Package Height: 29.61
- Package Weight: 963.05
Product info last updated on February 25, 2026 3:53am UTC
Category: Motors
