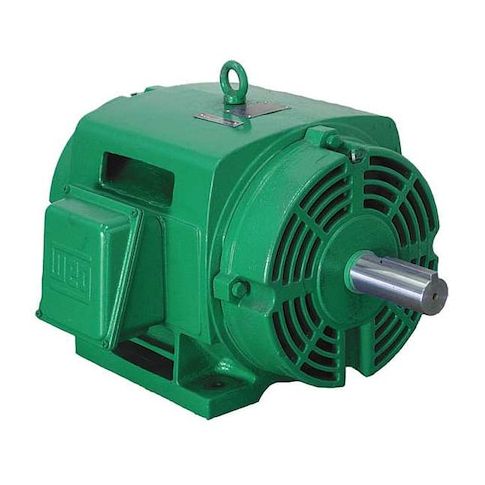

Three-Phase General Purpose Motor, 60 HP, 326TS Frame, 575V AC Voltage, 3555 rpm Nameplate RPM MPN:06036OT3H326TS
Three-Phase General Purpose Motor, 60 HP, 326TS Frame, 575V AC Voltage, 3555 rpm Nameplate RPM
This 60 HP three-phase general purpose motor is designed for demanding applications in industrial settings. With a nameplate RPM of 3555 and a high efficiency rating of 93.6%, this motor provides reliable and efficient power for continuous duty operations. Its open drip-proof motor enclosure design and cast iron frame ensure durability and resistance to harsh environments. Suitable for use in manufacturing, processing, and other industrial processes, this motor is also certified for CE, CSA, and UL compliance, making it a reliable choice for a wide range of applications, including machinery, pumps, and conveyor systems.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Ball motor bearings provide long-lasting and reliable rotation with minimal friction and wear.
- Cast iron motor frame material ensures durability and resistance to corrosion in harsh environments.
Top product applications:
- Industrial Pumping Systems
- High-Volume Manufacturing Facilities
- Heavy-Duty Material Handling Equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 60 HP, Nameplate RPM 3555 rpm, Frame 326TS, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 56.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.50
- Package Width: 24.00
- Package Height: 19.50
- Package Weight: 530.00
Product info last updated on February 24, 2026 4:26am UTC
Category: Motors
