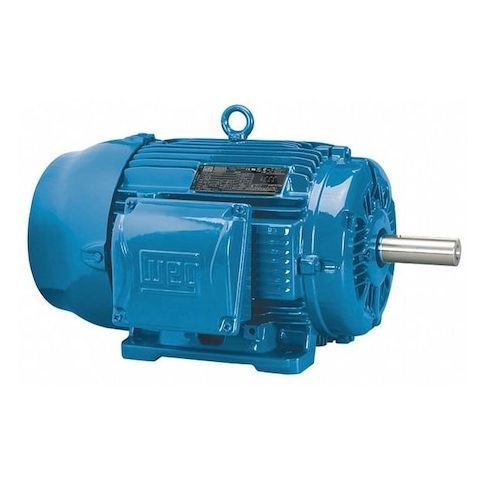

Three-Phase General Purpose Motor, 50 HP, 326T Frame, 575V AC Voltage, 1780 rpm Nameplate RPM MPN:05018ET3H326T-W22
Three-Phase General Purpose Motor, 50 HP, 326T Frame, 575V AC Voltage, 1780 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 50 HP, Nameplate RPM 1780 rpm, Frame 326T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 47.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1701-1800, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 24.00
- Package Height: 26.00
- Package Weight: 437.00
Product info last updated on February 6, 2026 1:07am UTC
Category: Motors
