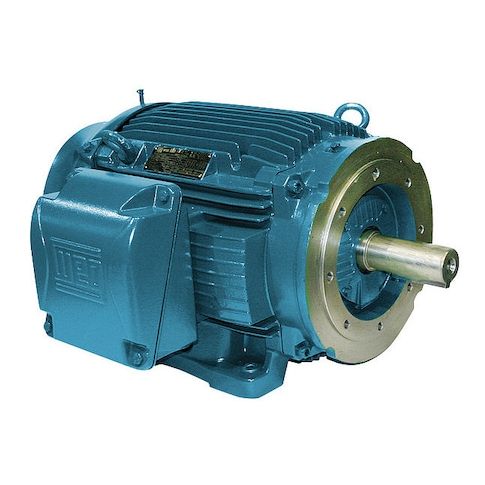

Three-Phase General Purpose Motor, 60 HP, 364/5TC Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM MPN:06018ET3E364TC-W22
Three-Phase General Purpose Motor, 60 HP, 364/5TC Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM
This 60 HP three-phase general purpose motor is designed for demanding industrial applications, offering high efficiency and reliability. With a nameplate RPM of 1775, it provides consistent performance in a variety of settings. Its totally enclosed fan cooled motor enclosure design ensures safe operation in harsh environments. Ideal for use in manufacturing, processing, and material handling facilities, this motor can also be used for HVAC, pumping, and conveyor systems. Its high service factor and ball bearings provide extended lifespan, while its compact design makes it easy to integrate into existing systems. Suitable for continuous duty.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan-cooled motor enclosure for reliable operation in harsh environments
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial Processing
- Pumps and Compressors
- Conveyor Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 60 HP, Nameplate RPM 1775 rpm, Frame 364/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 143.0/71.6 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 43.12
- Package Width: 28.54
- Package Height: 27.72
- Package Weight: 869.00
Product info last updated on January 27, 2026 12:16pm UTC
Category: Motors
