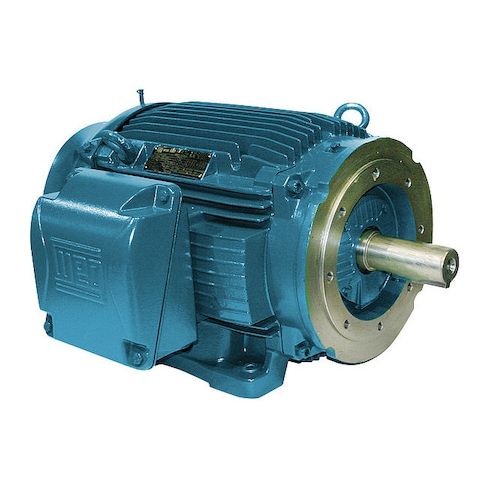

Three-Phase General Purpose Motor, 75 HP, 364/5TC Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM MPN:07518ET3E365TC-W22
Three-Phase General Purpose Motor, 75 HP, 364/5TC Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM
This 75 HP three-phase general purpose motor is designed for a wide range of applications, including industrial processes, manufacturing, and commercial facilities. Its totally enclosed fan cooled design ensures reliable operation in harsh environments, while its 95.4% nominal efficiency reduces energy costs and minimizes environmental impact. With a continuous duty rating and CW/CCW motor shaft rotation, this motor is suitable for applications requiring high torque and consistent performance. Its compact 364/5TC frame makes it easy to install and integrate into existing systems, making it an ideal choice for industries seeking a reliable and efficient motor solution.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable cooling in harsh environments
- Ball motor bearings for smooth and durable operation
Top product applications:
- Pumps and pumping systems
- Conveyors and material handling equipment
- Fans and blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 75 HP, Nameplate RPM 1775 rpm, Frame 364/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 174.0/87.2 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 43.12
- Package Width: 28.54
- Package Height: 27.72
- Package Weight: 919.00
Product info last updated on February 12, 2026 1:33pm UTC
Category: Motors
