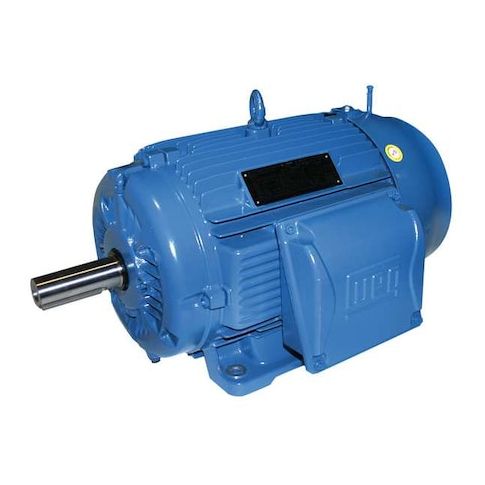

Three-Phase Metric Motor, 10 HP, 132M Frame, 460V AC Voltage, 1, 770 Nameplate RPM MPN:00718ET3Y132M-W22
Three-Phase Metric Motor, 10 HP, 132M Frame, 460V AC Voltage, 1, 770 Nameplate RPM
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, 7.5 kW, Nameplate RPM 1,770, Frame 132M, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 15.60
- Package Height: 14.10
- Package Weight: 181.00
Product info last updated on March 11, 2026 5:25pm UTC
Category: Motors
