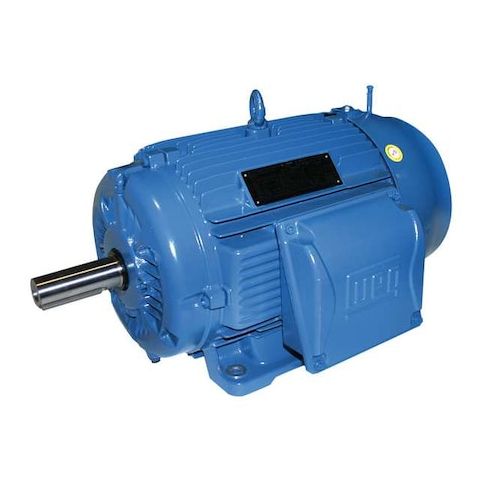

Three-Phase Metric Motor, 15 HP, 160M Frame, 460V AC Voltage, 3550 rpm Nameplate RPM MPN:01136ET3Y160M-W22
Three-Phase Metric Motor, 15 HP, 160M Frame, 460V AC Voltage, 3550 rpm Nameplate RPM
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, 11.0 kW, Nameplate RPM 3550 rpm, Frame 160M, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 17.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.54
- Package Width: 18.89
- Package Height: 16.72
- Package Weight: 276.00
Product info last updated on February 15, 2026 11:00pm UTC
Category: Motors
