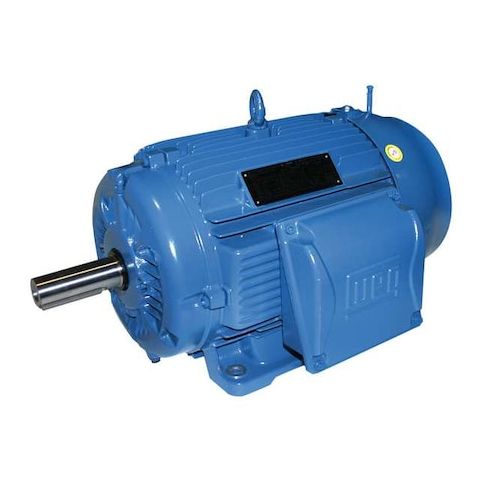

Three-Phase Metric Motor, 20 HP, 180L Frame, 460V AC Voltage, 1180 rpm Nameplate RPM MPN:01512ET3Y180L-W22
Three-Phase Metric Motor, 20 HP, 180L Frame, 460V AC Voltage, 1180 rpm Nameplate RPM
This high-performance Three-Phase Metric Motor is designed for demanding industrial applications, delivering 20 HP of power and 1180 rpm of speed. Built with a robust 180L frame and totally enclosed fan cooled motor enclosure, it withstands harsh environments and maintains efficiency at 91.7%. Suitable for continuous duty, it's perfect for use in manufacturing, processing, and material handling facilities. Its rigid base mounting and cast iron frame provide stability and durability, while its CW/CCW rotation and ball bearings ensure smooth operation. With a 1.25 service factor and Class F insulation, it's a reliable choice for applications requiring high torque and long lifespan.
Top product features:
- Three-Phase Metric Motor
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumping stations
- Chemical processing plants
- Power generation facilities
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, 15.0 kW, Nameplate RPM 1180 rpm, Frame 180L, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 24.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.64
- Package Width: 18.11
- Package Height: 18.26
- Package Weight: 456.00
Product info last updated on March 6, 2026 8:51am UTC
Category: Motors
