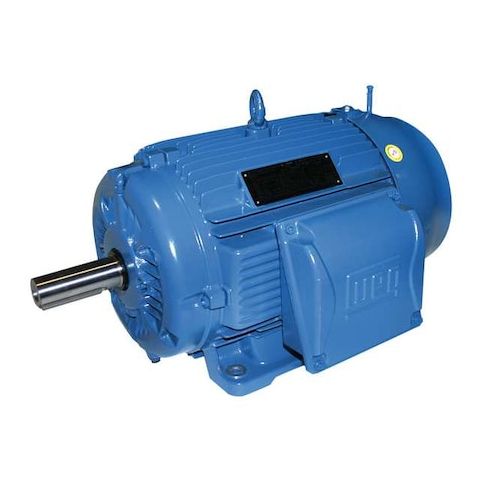

Three-Phase Metric Motor, 20 HP, 160L Frame, 460V AC Voltage, 1775 rpm Nameplate RPM MPN:01518ET3Y160L-W22
Three-Phase Metric Motor, 20 HP, 160L Frame, 460V AC Voltage, 1775 rpm Nameplate RPM
This high-performance 20 HP three-phase metric motor is designed for demanding industrial applications. Built with a totally enclosed fan cooled enclosure and rigid base motor mounting, it provides reliable operation in harsh environments. With a nameplate RPM of 1775 and a nominal efficiency of 93%, it offers high productivity and energy savings. Suitable for continuous duty, it's ideal for use in manufacturing, processing, and material handling facilities. Its CW/CCW motor shaft rotation and cast iron frame ensure durability and long lifespan. Perfect for applications requiring high torque and power, this motor is a reliable choice for heavy-duty industrial use.
Top product features:
- Three-Phase operation for efficient power distribution
- Totally Enclosed Fan Cooled Motor Enclosure for reliable operation in harsh environments
- Ball Motor Bearings for smooth and durable motor operation
Top product applications:
- Pump applications due to high torque and efficiency
- Machine tool applications requiring high power and reliability
- Textile mill applications where the motor's low vibration and noise operation are beneficial
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, 15.0 kW, Nameplate RPM 1775 rpm, Frame 160L, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.00
- Package Width: 20.00
- Package Height: 16.70
- Package Weight: 342.00
Product info last updated on February 20, 2026 5:21am UTC
Category: Motors
