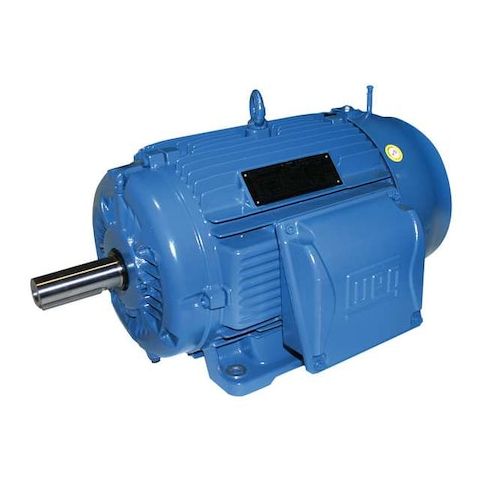

Three-Phase Metric Motor, 20 HP, 160M Frame, 460V AC Voltage, 3550 rpm Nameplate RPM MPN:01536ET3Y160M-W22
Three-Phase Metric Motor, 20 HP, 160M Frame, 460V AC Voltage, 3550 rpm Nameplate RPM
This 20 HP three-phase metric motor is designed for high-performance applications in industrial settings. With a nameplate RPM of 3550 and a nominal efficiency of 91.7%, it provides reliable and efficient operation. Suitable for continuous duty, this motor is ideal for use in manufacturing, material handling, and other demanding applications. Its totally enclosed fan-cooled design and cast iron frame ensure durability and long lifespan. Additionally, the motor's ball bearings and 1.25 service factor enable smooth operation and increased capacity. With a compact design and easy mounting, this motor is a versatile solution for a wide range of industrial applications.
Top product features:
- Three-Phase AC voltage capability
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Manufacturing facilities
- Material handling equipment
- Pumps and compressors
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, 15.0 kW, Nameplate RPM 3550 rpm, Frame 160M, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 24.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.54
- Package Width: 18.89
- Package Height: 16.72
- Package Weight: 284.00
Product info last updated on March 14, 2026 7:49pm UTC
Category: Motors
