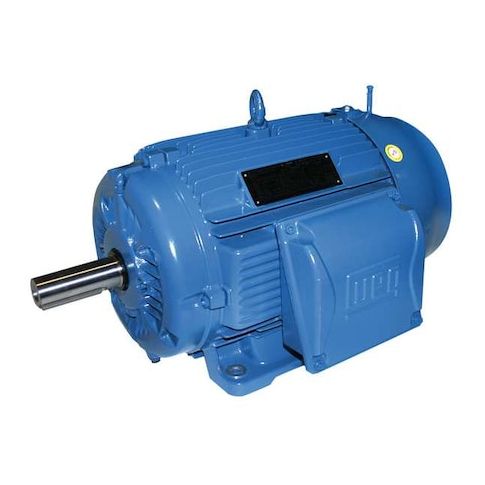

Three-Phase Metric Motor, 25 HP, 160L Frame, 460V AC Voltage, 3550 rpm Nameplate RPM MPN:01836ET3Y160L-W22
Three-Phase Metric Motor, 25 HP, 160L Frame, 460V AC Voltage, 3550 rpm Nameplate RPM
This 25 HP, three-phase metric motor is designed for heavy-duty applications requiring high torque and reliability. With a nameplate RPM of 3550 and a nominal efficiency of 92.4%, it provides efficient power delivery in continuous duty operations. The totally enclosed fan-cooled motor enclosure ensures safe and quiet operation in various environments. Suitable for use in industrial settings, such as manufacturing, processing, and material handling, this motor is also ideal for applications in oil and gas, power generation, and water treatment. Its rugged design and durable construction make it a reliable choice for demanding operations.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy losses.
- Totally enclosed fan cooled motor enclosure design protects the motor from dust and moisture.
- Ball bearings provide smooth and quiet motor operation.
Top product applications:
- Pump applications requiring a high horsepower motor in a compact frame size
- Industrial machinery and equipment such as conveyor belts, mixers, and grinders
- High-temperature applications such as dryers, ovens, and heat treatment equipment
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, 18.5 kW, Nameplate RPM 3550 rpm, Frame 160L, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 29.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.28
- Package Width: 18.89
- Package Height: 16.72
- Package Weight: 322.00
Product info last updated on February 24, 2026 5:15am UTC
Category: Motors
