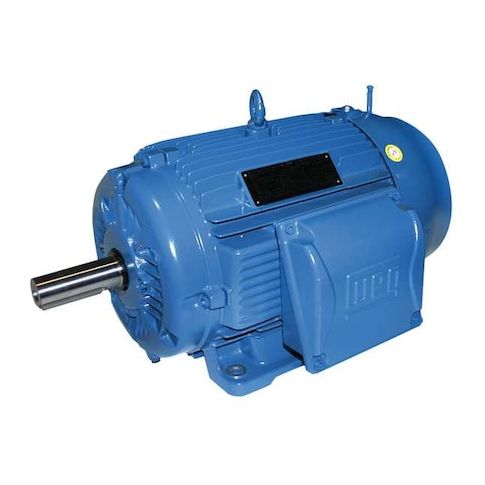

Three-Phase Metric Motor, 30 HP, 200L Frame, 460V AC Voltage, 1, 180 Nameplate RPM MPN:02212ET3Y200L-W22
Three-Phase Metric Motor, 30 HP, 200L Frame, 460V AC Voltage, 1, 180 Nameplate RPM
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, 22.0 kW, Nameplate RPM 1,180, Frame 200L, Voltage 460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 37.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.98
- Package Width: 22.47
- Package Height: 20.27
- Package Weight: 562.00
Product info last updated on February 5, 2026 12:45am UTC
Category: Motors
