Three-Phase Metric Motor, 30 HP, 180M Frame, 460V AC Voltage, 3, 555 Nameplate RPM MPN:02236ET3Y180M-W22
Three-Phase Metric Motor, 30 HP, 180M Frame, 460V AC Voltage, 3, 555 Nameplate RPM

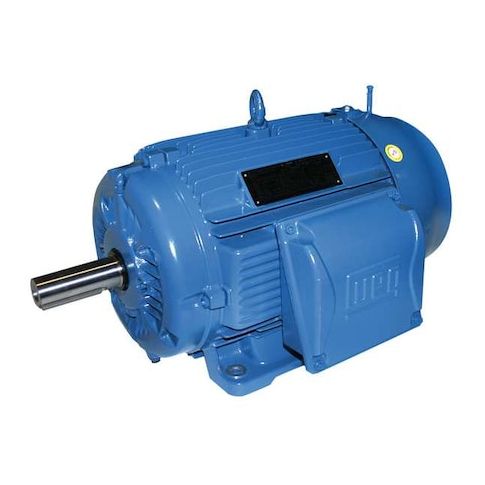

The Weg 30 HP Three-Phase Metric Motor is a high-performance solution for demanding industrial applications. Designed for continuous duty, this motor provides reliable operation in a wide range of environments, with a maximum ambient temperature of 40 degrees C. Its totally enclosed fan-cooled design and rigid base mounting ensure stable and efficient operation. With a high efficiency rating of 92.4% and a service factor of 1.25, this motor is ideal for applications such as pumps, fans, and conveyor systems. Its compact 180M frame and CW/CCW shaft rotation make it a versatile choice for various industrial settings.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Pump applications
- Conveyor system
- Machine tool
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, 22.0 kW, Nameplate RPM 3,555, Frame 180M, Voltage 460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 34.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.14
- Package Width: 20.11
- Package Height: 18.26
- Package Weight: 418.00
Product info last updated on January 27, 2026 3:45pm UTC
Category: Motors
