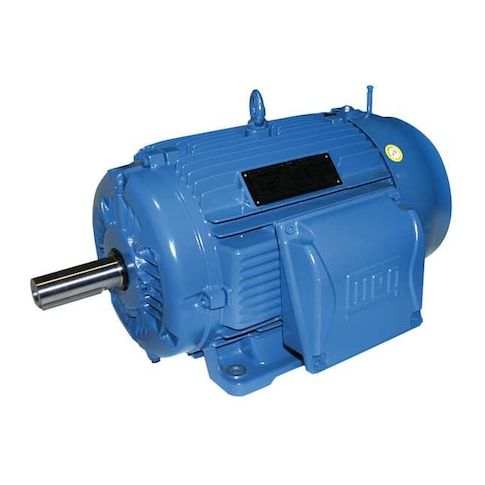

Three-Phase Metric Motor, 40 HP, 200L Frame, 460V AC Voltage, 3570 rpm Nameplate RPM MPN:03036ET3Y200L-W22
Three-Phase Metric Motor, 40 HP, 200L Frame, 460V AC Voltage, 3570 rpm Nameplate RPM
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 40 HP, 30.0 kW, Nameplate RPM 3570 rpm, Frame 200L, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 47.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.00
- Package Width: 35.00
- Package Height: 19.30
- Package Weight: 571.00
Product info last updated on March 24, 2026 6:33pm UTC
Category: Motors
