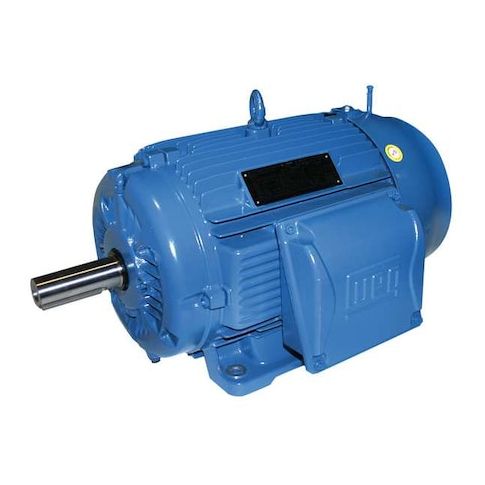

Three-Phase Metric Motor, 150 HP, 315S/M Frame, 460V AC Voltage, 1190 rpm Nameplate RPM MPN:11012ET3Y315S/M-W22
Three-Phase Metric Motor, 150 HP, 315S/M Frame, 460V AC Voltage, 1190 rpm Nameplate RPM
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 150 HP, 110.0 kW, Nameplate RPM 1190 rpm, Frame 315S/M, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 178.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 65 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 52.16
- Package Width: 34.83
- Package Height: 32.24
- Package Weight: 2634.00
Product info last updated on February 2, 2026 7:12pm UTC
Category: Motors
