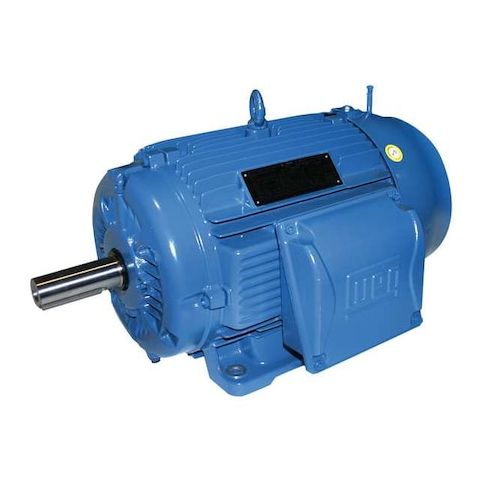

Three-Phase Metric Motor, 150 HP, 280S/M Frame, 460V AC Voltage, 1785 rpm Nameplate RPM MPN:11018ET3Y280S/M-W22
Three-Phase Metric Motor, 150 HP, 280S/M Frame, 460V AC Voltage, 1785 rpm Nameplate RPM
The Weg 150 HP Three-Phase Metric Motor is a high-performance solution for demanding industrial applications. With a nameplate RPM of 1785 and a nominal efficiency of 95.8%, this motor delivers reliable and efficient power in a wide range of uses, including manufacturing, processing, and material handling. Its totally enclosed fan-cooled design and rigid base motor mounting ensure long-lasting performance in harsh environments. Suitable for continuous duty, the motor is ideal for applications such as conveyor systems, pumps, and compressors, where high torque and reliability are critical. Its compact 280S/M frame and 460V AC voltage make it a versatile choice for various industries.
Top product features:
- Three-Phase Metric Motor, 150 HP, 280S/M Frame, 460V AC Voltage, 1785 rpm Nameplate RPM from Weg
- Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial Automation
- Heavy-Duty Manufacturing
- Pumping Systems
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 150 HP, 110.0 kW, Nameplate RPM 1785 rpm, Frame 280S/M, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 170.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 52.16
- Package Width: 34.83
- Package Height: 32.24
- Package Weight: 2107.00
Product info last updated on February 3, 2026 2:28am UTC
Category: Motors
