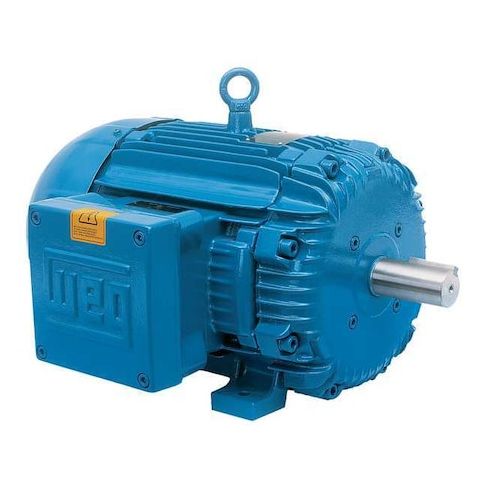

Hazardous Loc Mtr, 3 Ph, TEFC, 150 HP, T3C MPN:15012XT3G447T
Hazardous Loc Mtr, 3 Ph, TEFC, 150 HP, T3C
This hazardous location motor is designed for use in areas where flammable gases or vapors are present, such as oil rigs, chemical plants, or refineries. With a 150 horsepower rating and a 1,185 RPM nameplate speed, it provides reliable and efficient operation in the most demanding environments. The totally enclosed fan-cooled design ensures long motor life, while the Class I, Class II, and T3C temperature rating provides a wide range of application flexibility. Ideal for continuous duty cycles, this motor is suitable for applications such as pumps, fans, and compressors in hazardous locations.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled design
- Thermal protection via T-Stat
Top product applications:
- Hazardous location mining equipment
- Industrial process control systems
- Oil and gas extraction machinery
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 150 hp HP, Nameplate RPM 1,185 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 174.0 A, 447T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 66.93
- Package Width: 43.30
- Package Height: 37.40
- Package Weight: 2810.00
Product info last updated on March 22, 2026 3:04pm UTC
Category: Motors
