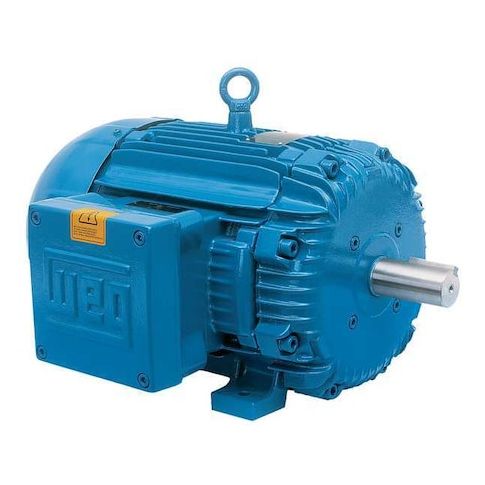

Hazardous Loc Mtr, 3 Ph, TEFC, 300 HP, T3C MPN:30018XT3G449T
Hazardous Loc Mtr, 3 Ph, TEFC, 300 HP, T3C
This 300 HP hazardous location motor is designed for use in high-risk environments, meeting Class I, Class II, and T3C temperature ratings. With a three-phase, totally enclosed fan-cooled (TEFC) design, it operates efficiently in temperatures up to 40°C. The motor's continuous duty cycle and 1.15 service factor ensure reliable performance in demanding applications. Suitable for use in industrial settings, such as oil refineries, chemical plants, and other hazardous locations, this motor provides a safe and reliable power solution for high-horsepower equipment. Its compact size and rugged design make it an ideal choice for a variety of applications.
Top product features:
- Three-phase design
- Totally Enclosed Fan Cooled enclosure
- Thermal protection with T-Stat
Top product applications:
- Pump applications in hazardous locations, such as chemical plants or oil refineries
- High-power fans in hazardous environments, such as mines or offshore platforms
- Heavy-duty compressors in hazardous locations, such as construction sites or factories with flammable gases
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 300 hp HP, Nameplate RPM 1,785 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 334.0 A, 449T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 66.93
- Package Width: 43.30
- Package Height: 37.40
- Package Weight: 3278.00
Product info last updated on March 26, 2026 7:29pm UTC
Category: Motors
