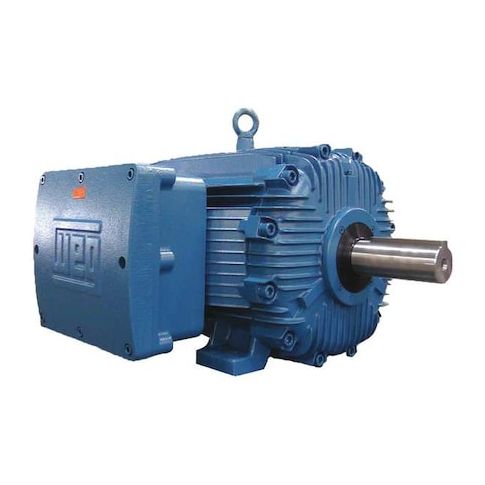

Hazardous Loc Mtr, 3 Ph, TEFC, 75 HP, T3C MPN:07512XT3E405T
Hazardous Loc Mtr, 3 Ph, TEFC, 75 HP, T3C
This 75 HP three-phase motor is designed for hazardous locations, meeting Class I, Class II, and Temp. Code T3C standards. Suitable for use in environments with explosive or flammable gases, it features a totally enclosed fan-cooled (TEFC) design and a robust 405T frame. With a continuous duty cycle and a maximum ambient temperature of 40°C, it's ideal for applications in manufacturing, oil and gas, and chemical processing. Its high service factor and thermal protection ensure reliable operation, making it a reliable choice for demanding industrial environments.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy losses.
- Totally Enclosed Fan Cooled (TEFC) design provides a safe and reliable operating environment.
- Continuous duty cycle enables uninterrupted operation for extended periods.
Top product applications:
- Pumping and chemical handling equipment
- Oil and gas industry equipment
- Power generation and transmission systems
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 75 hp HP, Nameplate RPM 1,180 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 174.0/87.0 A, 405T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.49
- Package Width: 32.36
- Package Height: 29.61
- Package Weight: 1291.00
Product info last updated on March 22, 2026 2:30pm UTC
Category: Motors
