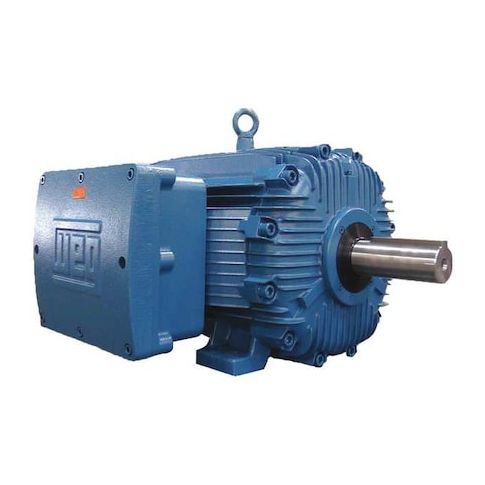

Hazardous Loc Mtr, 3 Ph, TEFC, 100 HP, T3C MPN:10018XT3E405T
Hazardous Loc Mtr, 3 Ph, TEFC, 100 HP, T3C
This hazardous location motor is designed for use in areas where flammable gases or vapors are present, making it ideal for applications in oil refineries, chemical plants, and other high-risk environments. The motor's three-phase design and totally enclosed fan-cooled enclosure ensure reliable and efficient operation, even in extreme temperatures. With a horsepower rating of 100 HP and a nameplate RPM of 1,780, this motor is perfect for applications requiring high power and speed. Its use in hazardous locations reduces the risk of electrical ignition and ensures a safer working environment.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and reliable operating environment
- Operates at 1,780 RPM for efficient performance
- Usable at 208V for flexibility in power supply applications
Top product applications:
- Pump applications in hazardous locations such as oil refineries and chemical plants
- Industrial machinery in hazardous locations such as power generation and transmission facilities
- Material handling equipment in hazardous locations such as mines and warehouses
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 100 hp HP, Nameplate RPM 1,780 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 226.0/113.0 A, 405T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.49
- Package Width: 32.36
- Package Height: 29.61
- Package Weight: 1390.00
Product info last updated on February 11, 2026 12:35am UTC
Category: Motors
