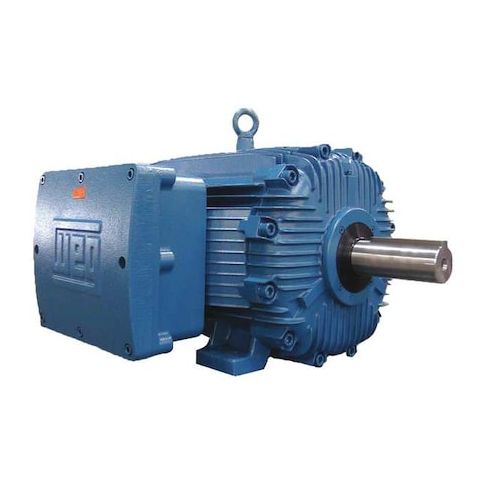

Hazardous Loc Mtr, 3 Ph, TEFC, 100 HP, T3C MPN:10012XT3E444T
Hazardous Loc Mtr, 3 Ph, TEFC, 100 HP, T3C
This hazardous location motor is designed for use in areas where flammable gases or dusts are present, meeting Class I, Class II, and T3C temperature ratings. With a 100 HP rating and 1,190 RPM, it provides reliable performance in demanding environments. The motor's totally enclosed fan-cooled design and Class F insulation ensure efficient operation and long lifespan. Suitable for a wide range of applications, including oil and gas refineries, chemical plants, and industrial facilities, this motor offers a high service factor of 1.15 and continuous duty cycle capability, making it an ideal choice for heavy-duty use.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle Capability
Top product applications:
- Hazardous location environments such as oil and gas refineries
- Petrochemical plants
- Chemical processing facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 100 hp HP, Nameplate RPM 1,190 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 242.0/121.0 A, 444T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 55.12
- Package Width: 42.20
- Package Height: 37.32
- Package Weight: 1720.00
Product info last updated on February 2, 2026 6:55am UTC
Category: Motors
