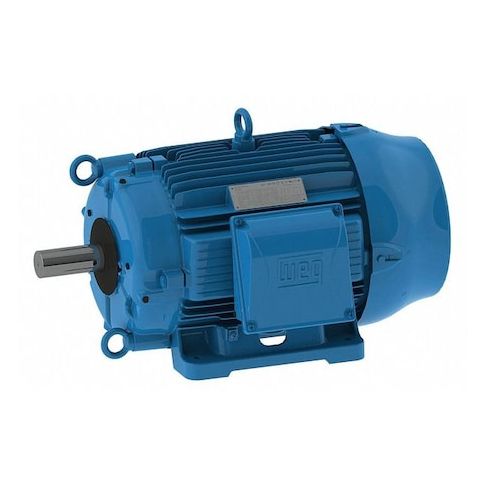

Cooling Tower Motor, Three Phase, 20 HP, 1, 175 Nameplate RPM, 230/460V AC, 284/6T Frame MPN:02012ET3ECT286T-W22
Cooling Tower Motor, Three Phase, 20 HP, 1, 175 Nameplate RPM, 230/460V AC, 284/6T Frame
This 20 HP three-phase cooling tower motor from Weg is designed for heavy-duty applications. Its 1,175 RPM nameplate speed and 230/460V AC voltage make it suitable for a wide range of cooling tower systems. The motor's totally enclosed fan-cooled design provides reliable operation in harsh environments. With a 1.25 service factor and ball bearings, it can withstand demanding conditions. Its rigid base mounting and all-angle mounting position allow for flexible installation. Ideal for industrial and commercial use, this motor is perfect for applications such as HVAC systems, power plants, and large industrial facilities.
Top product features:
- Totally Enclosed Fan Cooled design for improved reliability and reduced maintenance
- Three-phase operation for efficient power usage and scalability
- Ball bearings for smooth and quiet operation, reducing vibration and noise
Top product applications:
- Cooling towers in power plants
- Industrial process cooling systems
- Large commercial or residential air conditioning systems
Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 20 hp HP, 1,175 RPM Nameplate RPM, 284-6T Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 48.4/24.2 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position All Angle, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.25 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 7/8 in, Shaft Length 4 5/8 in, Length Less Shaft 23 5/16 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 37.93
- Package Width: 22.72
- Package Height: 26.15
- Package Weight: 463.00
Product info last updated on March 1, 2026 7:12am UTC
Category: Motors
