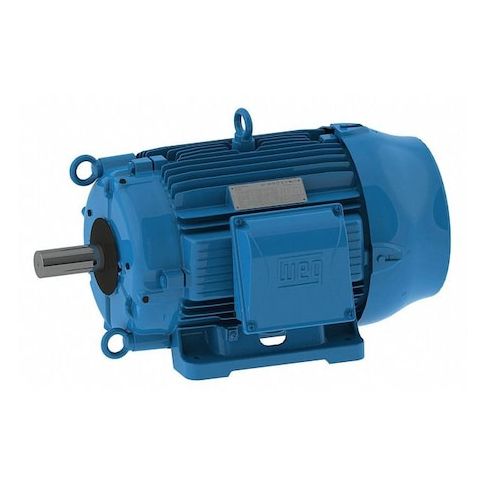

Cooling Tower Motor, Three Phase, 25 HP, 1, 180 Nameplate RPM, 230/460V AC, 324T Frame MPN:02512ET3ECT324T-W22
Cooling Tower Motor, Three Phase, 25 HP, 1, 180 Nameplate RPM, 230/460V AC, 324T Frame
This high-performance Cooling Tower Motor is designed for demanding applications, featuring a 25 HP, three-phase, totally enclosed fan-cooled design with a 1,180 RPM nameplate speed. The motor's 324T frame and rigid base mounting type provide stability and durability, while the ball bearings ensure smooth operation. Suitable for use in cooling towers, the motor's cast iron frame and CW/CCW shaft rotation accommodate various installation configurations. With a service factor of 1.25 and a maximum ambient temperature of 40°C, this motor is ideal for applications in hot and humid environments, providing efficient and reliable cooling performance.
Top product features:
- Three-phase operation provides a balanced power delivery for efficient motor performance.
- Totally enclosed fan cooled design allows for reliable operation in a variety of environmental conditions.
- Ball bearings ensure smooth and quiet motor operation.
Top product applications:
- HVAC Systems
- Industrial Cooling Systems
- Power Generation Plants
Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 25 hp HP, 1,180 RPM Nameplate RPM, 324T Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 61.6/30.8 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position All Angle, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.25 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 2 1/8 in, Shaft Length 5 1/4 in, Length Less Shaft 24 3/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 39.62
- Package Width: 24.80
- Package Height: 28.39
- Package Weight: 560.00
