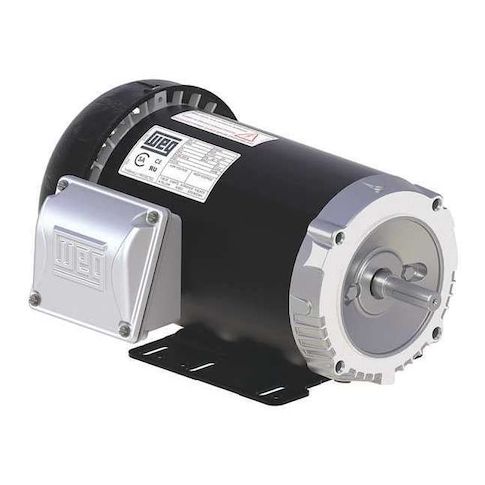

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 208-230/460V AC Voltage MPN:.7536ES3E56C-S
Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 208-230/460V AC Voltage
This 3/4 HP three-phase general purpose motor from Weg is designed for heavy-duty applications requiring continuous duty. Its totally enclosed fan cooled motor enclosure ensures efficient heat dissipation, while the ball motor bearings provide smooth operation. The motor's rigid base and C-face mounting type make it easy to install and maintain. Suitable for use in industrial settings, such as manufacturing facilities, warehouses, and power generation plants, this motor offers reliable performance and long lifespan. Its high efficiency rating of 72% also helps reduce energy consumption and lower operating costs, making it a cost-effective solution for demanding applications.
Top product features:
- Three-Phase General Purpose Motor
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial machinery
- Conveyor systems
- Pumps and compressors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 3475 rpm, Frame 56C, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.50-2.26/1.13 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 12.50
- Package Height: 9.50
- Package Weight: 22.70
Product info last updated on February 22, 2026 3:06pm UTC
Category: Motors
