Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 208-230/460V AC Voltage MPN:.5012ES3E56C-S
Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 208-230/460V AC Voltage

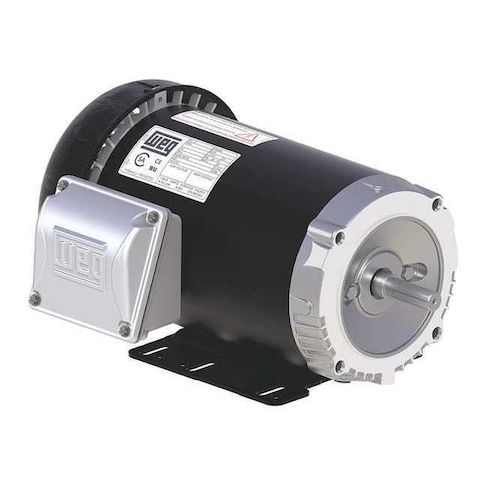

This Weg three-phase general purpose motor is a reliable and efficient solution for various industrial applications. With a 1/2 HP rating and 56C frame, it's suitable for use in a range of settings, from manufacturing and processing to HVAC and material handling. The motor's totally enclosed fan cooled design and ball bearings ensure long-lasting performance and minimize maintenance. Its high efficiency and continuous duty rating make it an ideal choice for demanding applications, while its compact size and rigid base make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 1160 rpm, Frame 56C, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.19-1.98/0.992 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 12.40
- Package Height: 9.00
- Package Weight: 28.50
Product info last updated on February 20, 2026 2:06am UTC
Category: Motors
