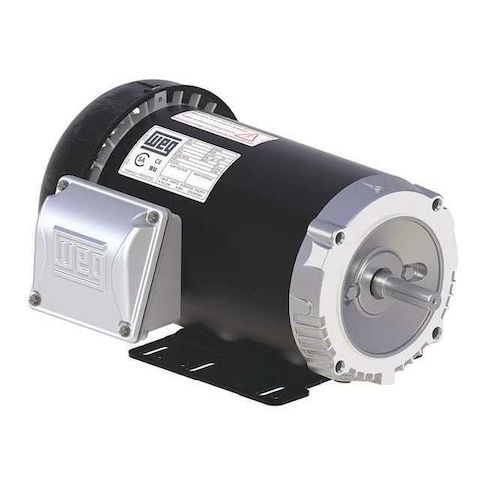

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 208-230/460V AC Voltage MPN:.2536ES3E56C-S
Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 208-230/460V AC Voltage
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 3475 rpm, Frame 56C, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.01-0.914/0.457 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 57.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 12.40
- Package Height: 9.30
- Package Weight: 20.94
Product info last updated on February 24, 2026 11:50am UTC
Category: Motors
