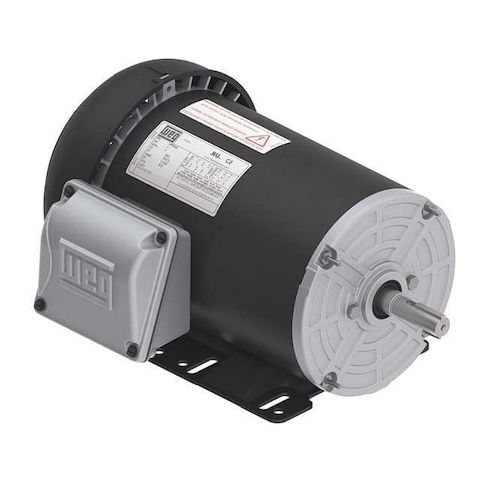

Three-Phase General Purpose Motor, 1/3 HP, 56 Frame, 208-230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:.3318ES3E56-S
Three-Phase General Purpose Motor, 1/3 HP, 56 Frame, 208-230/460V AC Voltage, 1765 rpm Nameplate RPM
This 1/3 HP three-phase general purpose motor is designed for a wide range of applications, including industrial machinery, HVAC systems, and commercial equipment. With a nameplate RPM of 1765 and a high efficiency rating of 74%, it provides reliable and efficient operation. The motor features a totally enclosed fan cooled design, steel frame, and ball bearings for long-lasting durability. Suitable for continuous duty applications, it operates within a temperature range of 40°C and is CSA and UL certified. Ideal for use in high-traffic areas, this motor is a reliable choice for various industries and applications that require a high level of performance and reliability.
Top product features:
- Three-Phase General Purpose Motor, 1/3 HP, 56 Frame, 208-230/460V AC Voltage, 1765 rpm
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps and fans for industrial applications
- Air conditioning and refrigeration systems
- Compressors and blowers for manufacturing processes
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/3 HP, Nameplate RPM 1765 rpm, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.38-1.25/0.624 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 74 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 12.30
- Package Height: 9.50
- Package Weight: 21.60
Product info last updated on January 16, 2026 11:54am UTC
Category: Motors
