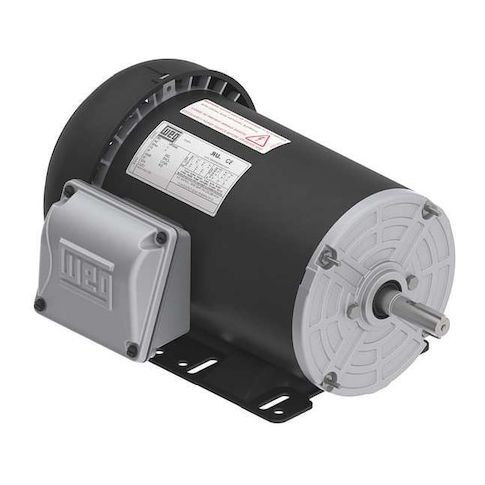

Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 208-230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:.2518ES3E56-S
Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 208-230/460V AC Voltage, 1765 rpm Nameplate RPM
This 1/4 HP three-phase general purpose motor from Weg is a reliable and efficient solution for a variety of applications. Suitable for continuous duty, it operates at 1765 rpm and features a totally enclosed fan cooled motor enclosure design. With a high service factor of 1.15 and ball bearings for smooth operation, this motor is ideal for use in industrial settings, such as manufacturing facilities, warehouses, and commercial buildings. Its compact size and rigid base mounting type make it easy to install and integrate into existing systems, providing a cost-effective and reliable power solution.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pumps and water treatment systems
- Conveyor systems and material handling equipment
- Fans and blowers for HVAC and industrial ventilation
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 1765 rpm, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.15-1.04/0.521 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 70 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 12.40
- Package Height: 9.00
- Package Weight: 21.70
Product info last updated on February 25, 2026 6:58pm UTC
Category: Motors
