Three-Phase General Purpose Motor, 3/4 HP, 56 Frame, 208-230/460V AC Voltage, 1, 155 Nameplate RPM MPN:.7512ES3E56-S
Three-Phase General Purpose Motor, 3/4 HP, 56 Frame, 208-230/460V AC Voltage, 1, 155 Nameplate RPM

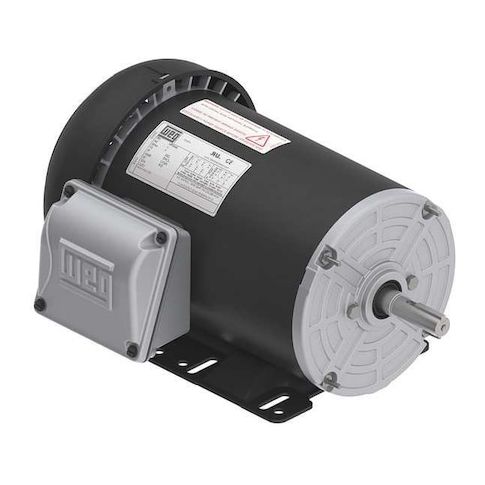

This 3/4 HP three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled motor enclosure design provides a safe and efficient operating environment, while its rigid base motor mounting type ensures stable performance. With a nameplate RPM of 1,155 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks. Its high efficiency and continuous duty capabilities make it ideal for applications such as conveyor systems, pumps, and fans, providing reliable and cost-effective operation.
Top product features:
- Three-Phase General Purpose Motor, Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Pumps
- Industrial machinery
- Fans and blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 1,155, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.96-2.68/1.34 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 75.5 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.40
- Package Width: 12.30
- Package Height: 9.10
- Package Weight: 33.30
Product info last updated on February 21, 2026 4:40am UTC
Category: Motors
