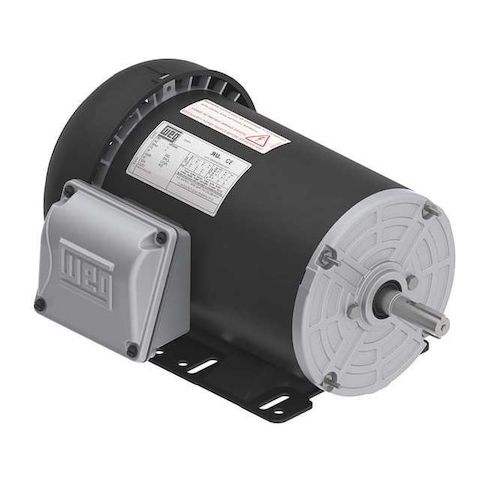

Three-Phase General Purpose Motor, 0.75 HP, 56 Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM MPN:.7518ES3E56-S
This 0.75 HP three-phase general purpose motor from Weg is a reliable and efficient solution for various industrial applications. Suitable for continuous duty, it operates at 1800 nameplate RPM and features a totally enclosed fan-cooled motor enclosure design. The motor is designed for use in a range of environments, including those with high ambient temperatures, and is protected against overheating. Its high efficiency of 78.5% and durable ball bearings ensure a long motor lifespan. Ideal for use in applications such as pumps, fans, and conveyor systems, this motor provides a cost-effective and dependable solution for industrial operations.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Industrial automation systems
- Manufacturing facilities
- Pumps and water treatment plants
The WEG - .7518ES3E56-S is a General Purpose Motor that falls under the category of 3-Phase AC Motors. This motor is designed for industrial and commercial applications, converting electrical energy into mechanical energy to power various types of machinery. It's versatile enough to be used across different sectors including manufacturing lines and HVAC systems.
Key Features of the WEG - .7518ES3E56-S General Purpose Motor:
- Duty Cycle: The motor is rated for continuous operation under specified conditions.
- Frame: With a frame size of 56, it conforms to standard specifications for compatibility and interchangeability.
- Full Load Amps: At full load, the motor is designed to draw up to 1.2 amps as per manufacturer's specifications.
- Horsepower (HP): The motor has a rated power output of 0.75 HP based on standard testing procedures.
- Inverter Rated: Yes - This indicates compatibility with variable frequency drives as per manufacturer's specifications.
- Motor Bearings: Ball bearings are incorporated within the design intended for reducing internal friction during specified operational loads
- Motor Enclosure Design: TEFC (Totally Enclosed Fan Cooled) design aims at protecting internal components according to manufacturer's guidelines
- Motor Mounting Position & Type: All Angle mounting position with Rigid Base type offers options for installation orientation as per product specification
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 9.70
- Package Weight: 24.72
