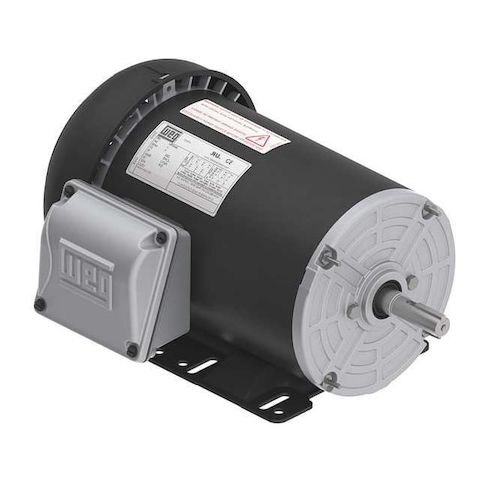

Three-Phase General Purpose Motor, 3/4 HP, 56 Frame, 208-230/460V AC Voltage, 3475 rpm Nameplate RPM MPN:.7536ES3E56-S
Three-Phase General Purpose Motor, 3/4 HP, 56 Frame, 208-230/460V AC Voltage, 3475 rpm Nameplate RPM
This 3/4 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. With a nameplate RPM of 3475, it provides reliable and efficient operation in environments up to 40°C. The totally enclosed fan-cooled motor enclosure and rigid base motor mounting type ensure durability and easy installation. Suitable for continuous duty, this motor is ideal for use in manufacturing, material handling, and other applications where high performance and reliability are required. Its CSA and UL certification ensure compliance with industry standards, making it a trusted choice for demanding industrial applications.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball motor bearings for smooth and durable operation
Top product applications:
- Pump applications for water, chemical, or other low-viscosity fluids
- Fans and blowers for industrial ventilation and air handling systems
- Conveyor systems for material handling and processing applications
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 3475 rpm, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.50-2.26/1.13 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.40
- Package Width: 12.50
- Package Height: 9.40
- Package Weight: 22.50
Product info last updated on February 2, 2026 9:42am UTC
Category: Motors
