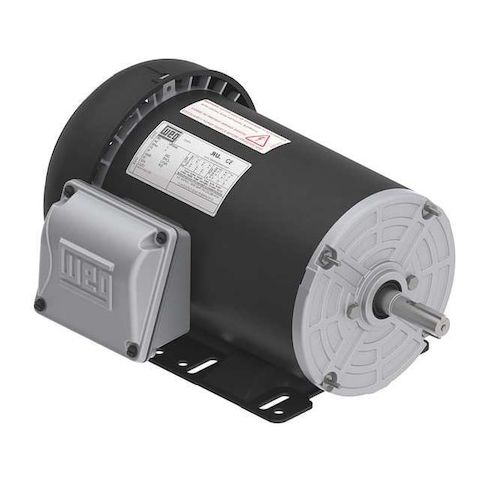

Three-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 1160 rpm Nameplate RPM MPN:.5012ES3E56-S
Three-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 1160 rpm Nameplate RPM
This 1/2 HP three-phase general purpose motor is designed for a variety of industrial and commercial applications. Suitable for use in environments with ambient temperatures up to 40°C, it features a totally enclosed fan cooled motor enclosure and ball bearings for smooth operation. With a high service factor of 1.15, it can handle demanding workloads while maintaining efficiency at 72%. Ideal for continuous duty applications, this motor is CSA and UL certified, making it a reliable choice for industries such as manufacturing, food processing, and material handling. Its compact design and rigid base mounting make it easy to integrate into existing systems.
Top product features:
- Three-Phase General Purpose Motor operation
- Totally Enclosed Fan Cooled Motor Enclosure Design for protection
- Ball Motor Bearings for smooth and efficient operation
Top product applications:
- Industrial conveyor belt systems
- Pumps in water treatment plants
- Fans in air handling systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 1160 rpm, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.19-1.98/0.992 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 12.40
- Package Height: 9.40
- Package Weight: 28.37
Product info last updated on February 15, 2026 5:26pm UTC
Category: Motors
