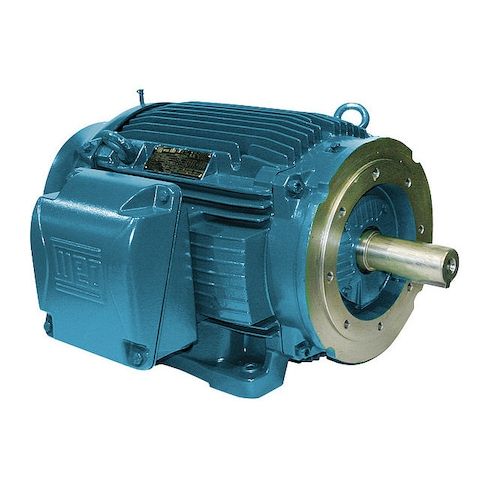

Three-Phase General Purpose Motor, 40 HP, 324TC Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:04018ET3E324TC-W22
Three-Phase General Purpose Motor, 40 HP, 324TC Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
Boost your industrial operations with the Weg 40 HP Three-Phase General Purpose Motor. This robust motor is designed for continuous duty and features a totally enclosed fan-cooled enclosure for reliable performance in harsh environments. With a high efficiency of 94.1% and a service factor of 1.25, this motor provides a cost-effective solution for applications such as conveyor systems, pumps, and compressors. Its 1,770 nameplate RPM and 230/460V AC voltage make it suitable for a wide range of industrial settings, including manufacturing facilities, power plants, and oil and gas refineries.
Top product features:
- Three-Phase AC Voltage Capability: 230/460V AC
- Totally Enclosed Fan Cooled Motor Enclosure Design for Reduced Noise and Increased Protection
- Ball Motor Bearings for Smooth and Quiet Operation
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 40 HP, Nameplate RPM 1,770, Frame 324TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 94.2/47.1 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 34.60
- Package Width: 25.10
- Package Height: 25.00
- Package Weight: 581.00
Product info last updated on February 18, 2026 3:33pm UTC
Category: Motors
