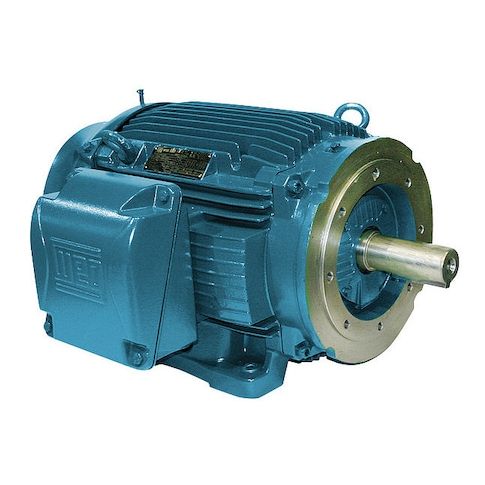

Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 230/460V AC Voltage, 3520 rpm Nameplate RPM MPN:02036ET3E256TC-W22
Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 230/460V AC Voltage, 3520 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 3520 rpm, Frame 256TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 46.4/23.2 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.30
- Package Width: 20.60
- Package Height: 16.40
- Package Weight: 306.00
Product info last updated on February 5, 2026 9:21am UTC
Category: Motors
