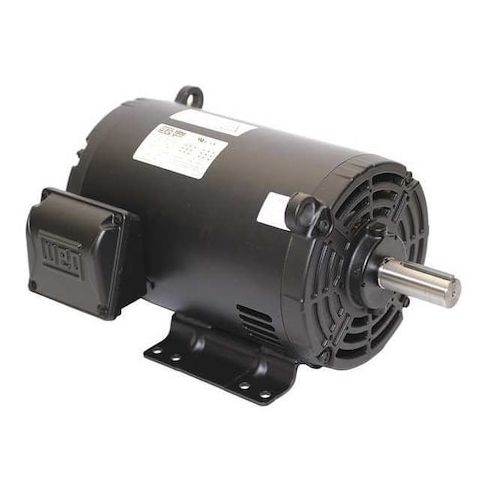

Three-Phase General Purpose Motor, 15 HP, 213/5T Frame, 230/460V AC Voltage, 3535 rpm Nameplate RPM MPN:01536OT3E215T-S
Three-Phase General Purpose Motor, 15 HP, 213/5T Frame, 230/460V AC Voltage, 3535 rpm Nameplate RPM
This 15 HP three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial processes, manufacturing, and power generation. Its 90.2% nominal efficiency and 1.15 service factor make it ideal for continuous duty operations. The motor features a rigid base mounting type and open drip proof enclosure design, ensuring reliable performance and easy maintenance. Suitable for use in temperatures up to 40°C, this motor is perfect for applications such as pumps, fans, and conveyor systems. Its CSA and UL certifications ensure compliance with industry standards.
Top product features:
- Three-phase operation for efficient power transmission
- Open drip-proof motor enclosure design for protection against dust and moisture
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Pump and fan applications requiring high horsepower and reliability
- Industrial machinery and equipment, such as conveyor belts and mixers
- Power generation and transmission applications, including power plants and substations
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 15 HP, Nameplate RPM 3535 rpm, Frame 213/5T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 34.4/17.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 16.00
- Package Height: 14.00
- Package Weight: 115.00
Product info last updated on February 4, 2026 1:07am UTC
Category: Motors
