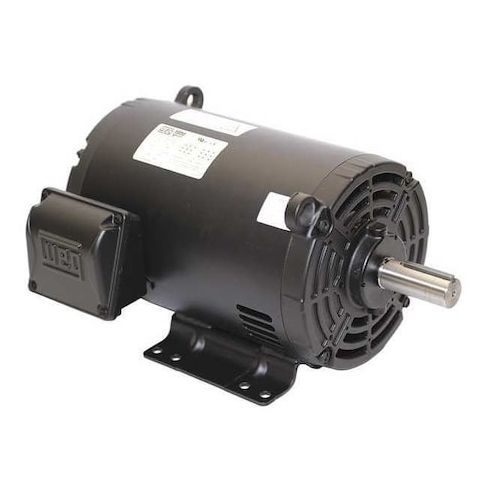

Three-Phase General Purpose Motor, 10 HP, 213/5T Frame, 230/460V AC Voltage, 3535 rpm Nameplate RPM MPN:01036OT3E213T-S
This 10 HP three-phase general purpose motor is designed for a wide range of industrial applications, including conveyor systems, pumps, and fans. Its robust construction and high efficiency make it an ideal choice for continuous duty operations, with a maximum ambient temperature of 40 degrees C. The motor's rigid base mounting type and ball bearings ensure smooth and reliable operation. With a nameplate RPM of 3535 and a service factor of 1.15, this motor is well-suited for demanding applications. Its compact size and lightweight design make it easy to integrate into existing systems. Perfect for heavy-duty use.
Top product features:
- Three-phase operation for efficient power distribution
- Ball bearings for smooth and quiet motor operation
- Continuous duty capability for reliable and sustained performance
Top product applications:
- Pump and fan applications
- Industrial machinery and equipment
- Conveyor systems and material handling equipment
The WEG - 01036OT3E213T-S is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed for industrial and commercial applications, converting electrical energy into mechanical energy to operate various types of machinery. It's versatile enough to be used across different sectors, from manufacturing lines to HVAC systems.
Key Features of the WEG - 01036OT3E213T-S General Purpose Motor:
- CC Number: The unique identifier assigned by EASA (Electrical Apparatus Service Association) for this motor is CC029A.
- Duty Cycle: This motor is rated for continuous operation under specified conditions.
- Frame: The frame size and design conforming to standard specifications are denoted as 213/5T.
- Full Load Amps: Under full load conditions, this motor is designed to draw a maximum current of 24.0/12.0 A.
- Inverter Rated: Yes - indicates compatibility with variable frequency drives for potential control over speed and torque.
- Horsepower (HP): The unit's output power is rated at 10 HP under specified conditions.
- Nominal Efficiency: Under standard operating conditions, the model has been tested to have an approximate efficiency rate of 89.5%."
- Voltage Compatibility: The unit is rated for operation within voltage ranges from 200-230/440V AC up to 208-230/460V AC as per manufacturer specifications.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.50
- Package Width: 16.00
- Package Height: 14.00
- Package Weight: 120.00
