Three-Phase General Purpose Motor, 10 HP, 213/5TC Frame, 575V AC Voltage, 1, 770 Nameplate RPM MPN:01018OT3H215TC-S
Three-Phase General Purpose Motor, 10 HP, 213/5TC Frame, 575V AC Voltage, 1, 770 Nameplate RPM

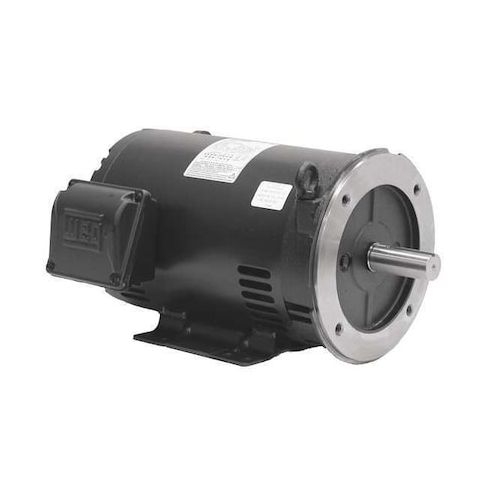

This 10 HP three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial processes, manufacturing, and commercial facilities. With a nameplate RPM of 1,770 and a voltage rating of 575V AC, this motor provides reliable and efficient power for continuous duty operations. Its open drip-proof motor enclosure design and rigid base mounting type ensure easy installation and reduced maintenance. The motor's high efficiency rating of 91.7% and 1.15 service factor make it an ideal choice for demanding applications, while its CSA and UL certifications ensure compliance with industry standards.
Top product features:
- Three-Phase Operation
- Ball Motor Bearings for Smooth Operation
- Continuous Duty Capability
Top product applications:
- Industrial Pump Drives
- Manufacturing Line Automation
- Water Treatment Plant Pumps
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 1,770, Frame 213/5TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 9.92 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.30
- Package Width: 16.20
- Package Height: 14.00
- Package Weight: 150.00
Product info last updated on March 1, 2026 3:56am UTC
Category: Motors
