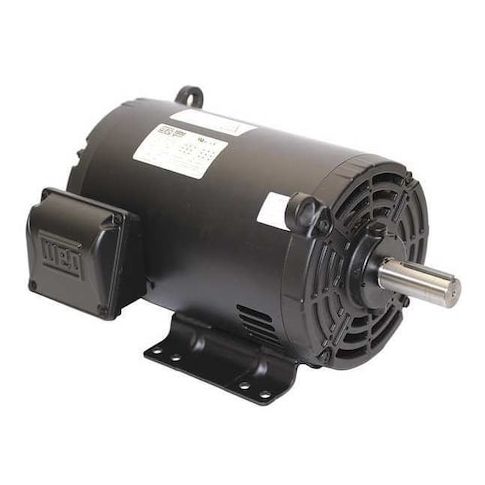

Three-Phase General Purpose Motor, 7 1/2 HP, 213/5T Frame, 575V AC Voltage, 1, 770 Nameplate RPM MPN:00718OT3H213T-S
Three-Phase General Purpose Motor, 7 1/2 HP, 213/5T Frame, 575V AC Voltage, 1, 770 Nameplate RPM
This 7 1/2 HP three-phase motor is designed for general purpose use in industrial settings. Its open drip-proof motor enclosure protects against dust and water, making it suitable for applications in harsh environments. With a nameplate RPM of 1,770 and a continuous duty rating, this motor is ideal for use in factories, manufacturing facilities, and other high-demand settings. Its rigid base mounting and ball bearings ensure reliable operation, while its 91% nominal efficiency and class F insulation provide long-term durability. Suitable for use in applications such as conveyor systems, pumps, and machinery, this motor meets CSA and UL standards.
Top product features:
- Three-phase operation provides a reliable power supply for demanding applications.
- Ball bearings ensure smooth and quiet motor operation.
- Continuous duty rating allows for uninterrupted operation over extended periods.
Top product applications:
- Industrial Pumping Systems
- Manufacturing Facilities
- Water Treatment Plants
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1,770, Frame 213/5T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 1701-1800, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 16.00
- Package Height: 14.00
- Package Weight: 123.00
Product info last updated on April 26, 2026 2:05pm UTC
Category: Motors
