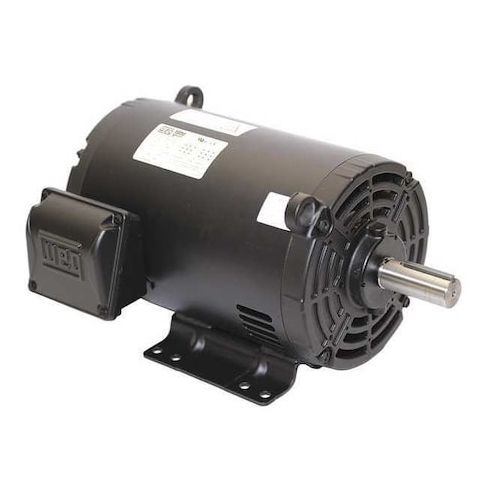

Three-Phase General Purpose Motor, 3 HP, 143/5T Frame, 575V AC Voltage, 3480 rpm Nameplate RPM MPN:00336OT3H145T-S
Three-Phase General Purpose Motor, 3 HP, 143/5T Frame, 575V AC Voltage, 3480 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 3480 rpm, Frame 143/5T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.87 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 12.40
- Package Height: 9.60
- Package Weight: 41.60
Product info last updated on February 3, 2026 8:04pm UTC
Category: Motors
