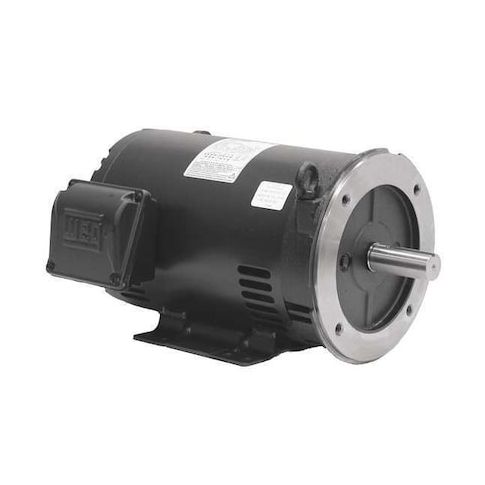

Three-Phase General Purpose Motor, 3 HP, 182/4TC Frame, 575V AC Voltage, 1765 rpm Nameplate RPM MPN:00318OT3H182TC-S
Three-Phase General Purpose Motor, 3 HP, 182/4TC Frame, 575V AC Voltage, 1765 rpm Nameplate RPM
This 3 HP three-phase general purpose motor is designed for a variety of industrial applications, including manufacturing, processing, and material handling. With a nameplate RPM of 1765, it provides reliable and efficient operation in continuous duty applications. The motor's steel frame and ball bearings ensure durability and long lifespan, while its high efficiency of 89.5% reduces energy costs and environmental impact. Suitable for use in environments up to 40°C, this motor is ideal for applications such as conveyor systems, pumps, and fans, and is certified to CSA and UL standards for added assurance.
Top product features:
- Three-Phase General Purpose Motor
- Operates at 1765 rpm
- Features a rigid base motor mounting type
Top product applications:
- Industrial Laundry Equipment
- Pumping Systems
- Textile Mill Machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1765 rpm, Frame 182/4TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.09 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.40
- Package Width: 14.70
- Package Height: 12.10
- Package Weight: 79.00
Product info last updated on February 7, 2026 7:53am UTC
Category: Motors
