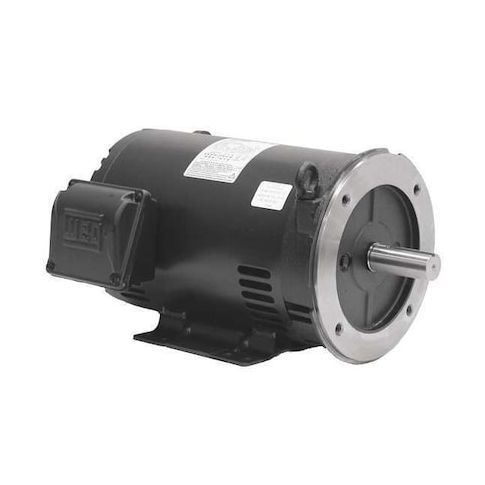

Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 575V AC Voltage, 1740 rpm Nameplate RPM MPN:00218OT3H145TC-S
Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 575V AC Voltage, 1740 rpm Nameplate RPM
This 2 HP three-phase general purpose motor from Weg is designed for a wide range of industrial applications requiring continuous duty operation. With a high efficiency rating of 86.5% and a maximum ambient temperature of 40 degrees C, this motor provides reliable and efficient performance in various environments. Its open drip-proof motor enclosure design and rigid base mounting type ensure easy installation and maintenance. Suitable for applications such as conveyor systems, pumps, and fans, this motor offers a cost-effective solution for industries requiring consistent and reliable power. Its compact size and durable construction make it an ideal choice for a variety of applications.
Top product features:
- Three-phase operation
- Ball motor bearings for smooth and quiet operation
- Rigid base motor mounting for secure and stable installation
Top product applications:
- Pumps and compressors for industrial use
- Fans and blowers for HVAC systems
- Conveyor belts and machinery for manufacturing
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1740 rpm, Frame 143/5TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.15 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.60
- Package Width: 11.80
- Package Height: 10.60
- Package Weight: 41.80
Product info last updated on March 28, 2026 6:54pm UTC
Category: Motors
