Three-Phase General Purpose Motor, 2 HP, 143/5T Frame, 575V AC Voltage, 1740 rpm Nameplate RPM MPN:00218OT3H145T-S
Three-Phase General Purpose Motor, 2 HP, 143/5T Frame, 575V AC Voltage, 1740 rpm Nameplate RPM

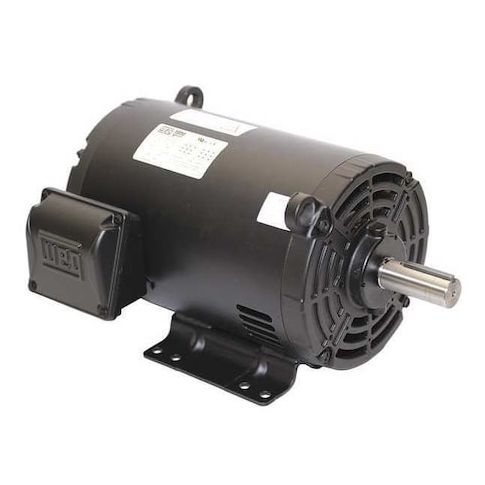

This 2 HP three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial and commercial use. Its 143/5T frame and 575V AC voltage rating make it suitable for high-power applications, while its 1740 rpm nameplate speed ensures efficient operation. With a nominal efficiency of 86.5 percent and a service factor of 1.15, this motor provides reliable and cost-effective performance. Its open drip-proof enclosure design and rigid base mounting type make it easy to integrate into existing systems, making it an ideal choice for manufacturers, processing facilities, and other heavy-duty applications.
Top product features:
- Three-Phase General Purpose Motor design with Open Drip Proof Motor Enclosure for protection against environmental factors
- Ball Motor Bearings for smooth and durable operation
- Rigid Base Motor Mounting Type for secure and stable installation
Top product applications:
- Industrial Pumping Systems
- Material Handling Equipment
- Power Generation and Distribution
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1740 rpm, Frame 143/5T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.15 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 12.40
- Package Height: 9.60
- Package Weight: 40.75
Product info last updated on March 2, 2026 5:53pm UTC
Category: Motors
